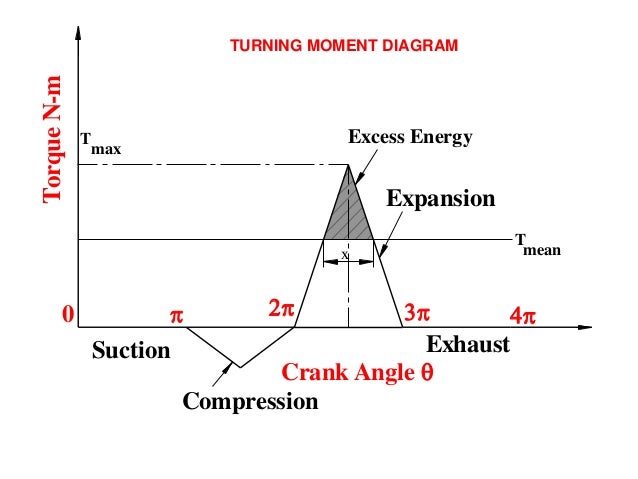

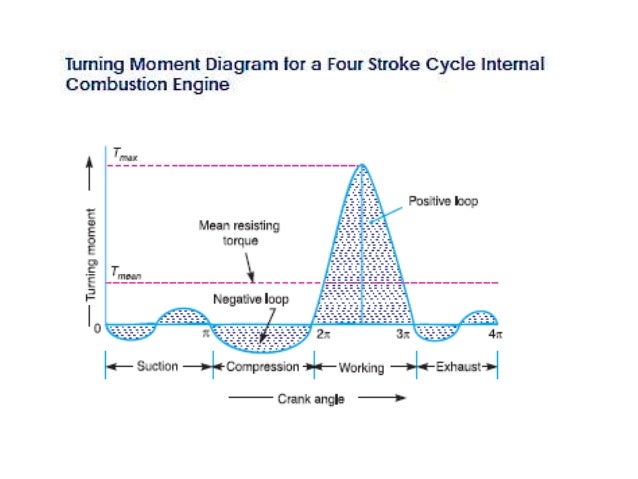

Turning Moment Diagram And Flywheel Ppt. Dynamic Force Analysis and Turning Moment Diagrams and Flywheel. The turning moment diagram also known as crank effort diagram is the graphical representation of the turning moment or crank-effort for various positions of the crank. Turning Moment Diagram and Flywheel 1. Turning Moment diagram Flywheelppt - Free download as Powerpoint Presentation ppt PDF File pdf Text File txt or view presentation slides online.

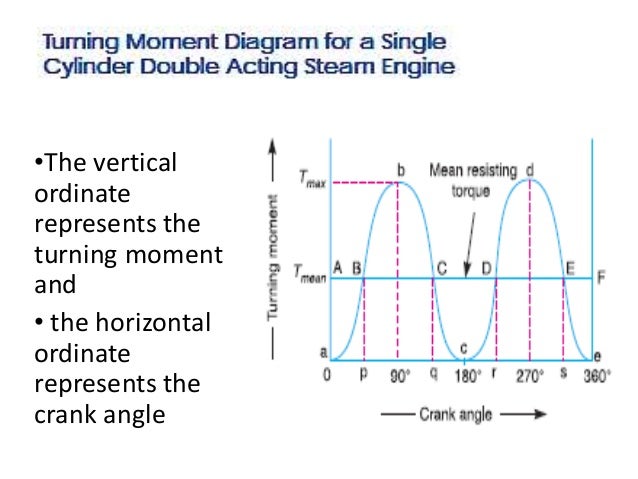

All rights reserved Powered by Radiant Media Solutions Foundation Board. Turning Moment Diagram for a Single Cylinder Double Acting Steam Engine When turning moment is positive engine torque is more than mean resisting torque as shown between points B C or D E crankshaft accelerates and work is done by steam. The turning moment diagram also known as crankrepresentation of the turning moment Figure 1. The turning moment diagram also known as crank effort diagram is the graphical representation of the turning moment or crank-effort for various positions of the crank. It is plotted on cartesian co-ordinates in which the turning moment. This diagram can be plotted progressively as explained below.
B A A B A R I SUBMITTED BY.
SONI Assistant Professor 2. A short summary of this paper. The turning moment diagram also known as crank effort diagram is the graphical representation of the turning moment or. Turning Moment Diagrams and Flywheel141 Turning moment diagram. When turning moment is negative engine torque is less than mean resisting torque as. Topic of Discussion Turning Moment Diagram Flywheel Piston effort Flywheel Coefficient of fluctuation of speed and energy Energy stored in a Flywheel Introduction The turning moment diagram also known as crank effort diagram is the graphical representation of the turning moment or crank-effort for various positions of the crank.
